LAMBORGHINI HURACAN ALPHA 28 TWIN TURBO PACKAGE (INSTALLED)

Serious Inquiries Only. Please Contact our Sales Dept. to Discuss Pricing and Scheduling.

The ALPHA Packages have dominated every single platform they’ve been built for. Countless world records and motorsport championship wins prove to our customers that they are getting the absolute best the performance aftermarket has to offer. The ALPHA 28 Twin Turbo Package for the Lamborghini Huracan has been painstakingly engineered and tested to OEM levels of quality, reliability and drivability. Using the same components that are found in our ALPHA 28 Twin Turbo Kit, this package has been developed by our in-house engineers to provide a turn-key motorsports solution for 2800+ horsepower.* The ALPHA 28, sets a new standard in competitive supercar performance.

• COMPLETE TWIN TURBO SYSTEM WITH MOTEC ECU & PROPRIETARY AMS TCU TUNING INCLUDED

• 2800+ HP ON RACE FUEL, 1000 HP ON 93 OCTANE PUMP GAS*

• 60-130 IN UNDER 2.1 SECONDS W/ RACE FUEL*

• UTILIZES RELIABLE G45-1600 GARRETT© TURBOCHARGERS W/ 80MM INDUCERS

• AMS GEARWORKS TRANSMISSION BUILT TO MAX EFFORT SPEC

• INCLUDES AMS ADVANCED TRACTION CONTROL PACKAGE W/ SYVECS GPS AND AWD CONTROLLER

• AMS BUILT LONG BLOCK WITH PROTOTYPE BILLET BLOCK AND MAX EFFORT SPEC COMPONENTS

• LAUNCH CONTROL, ROLLING ANTI-LAG, FLEX FUEL, AND OTHER ADVANCED FEATURES ON MOTEC

• LOW 7 SECOND QUARTER MILE TIMES CAPABLE WITH SUPPORTING DRAG MODIFICATIONS

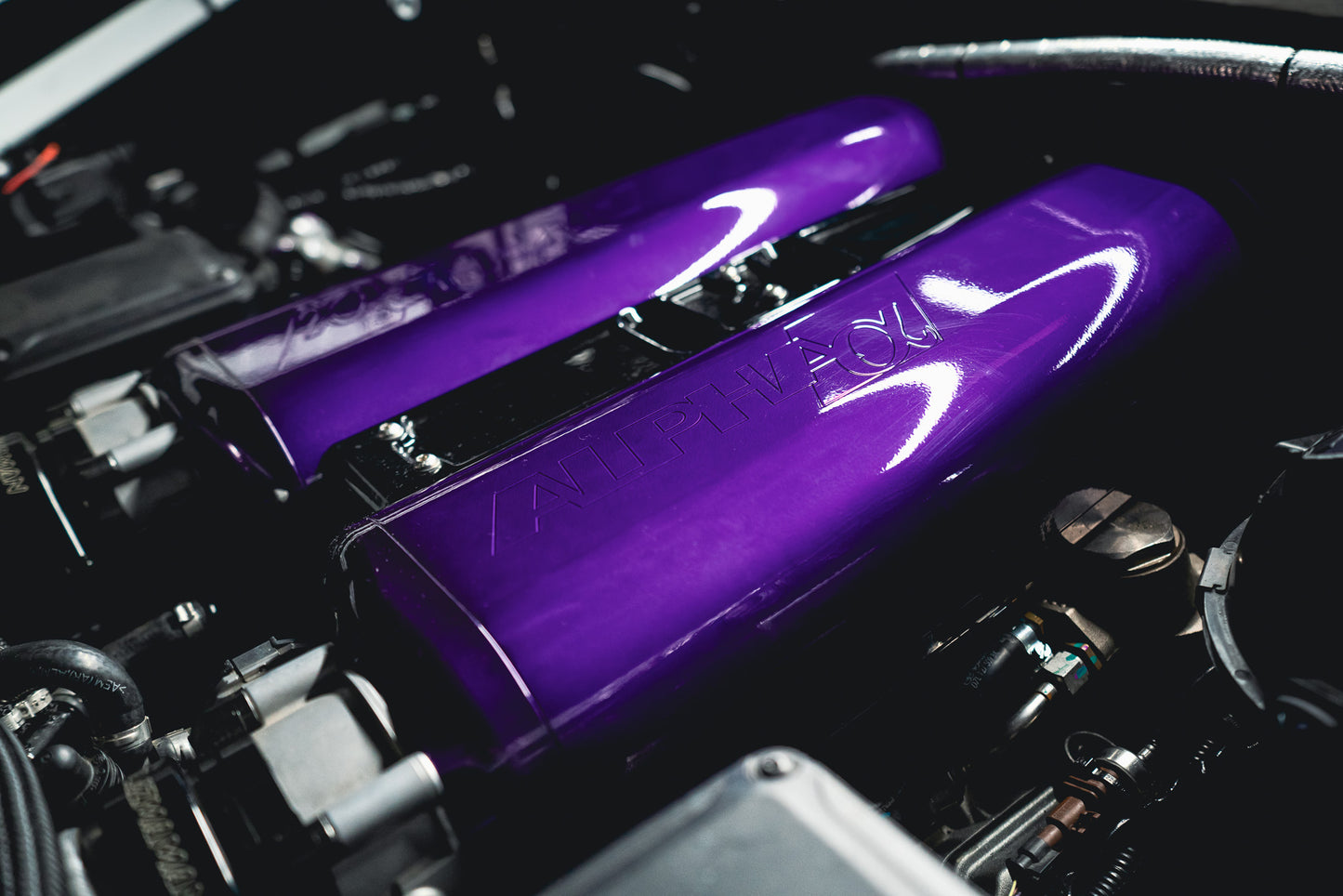

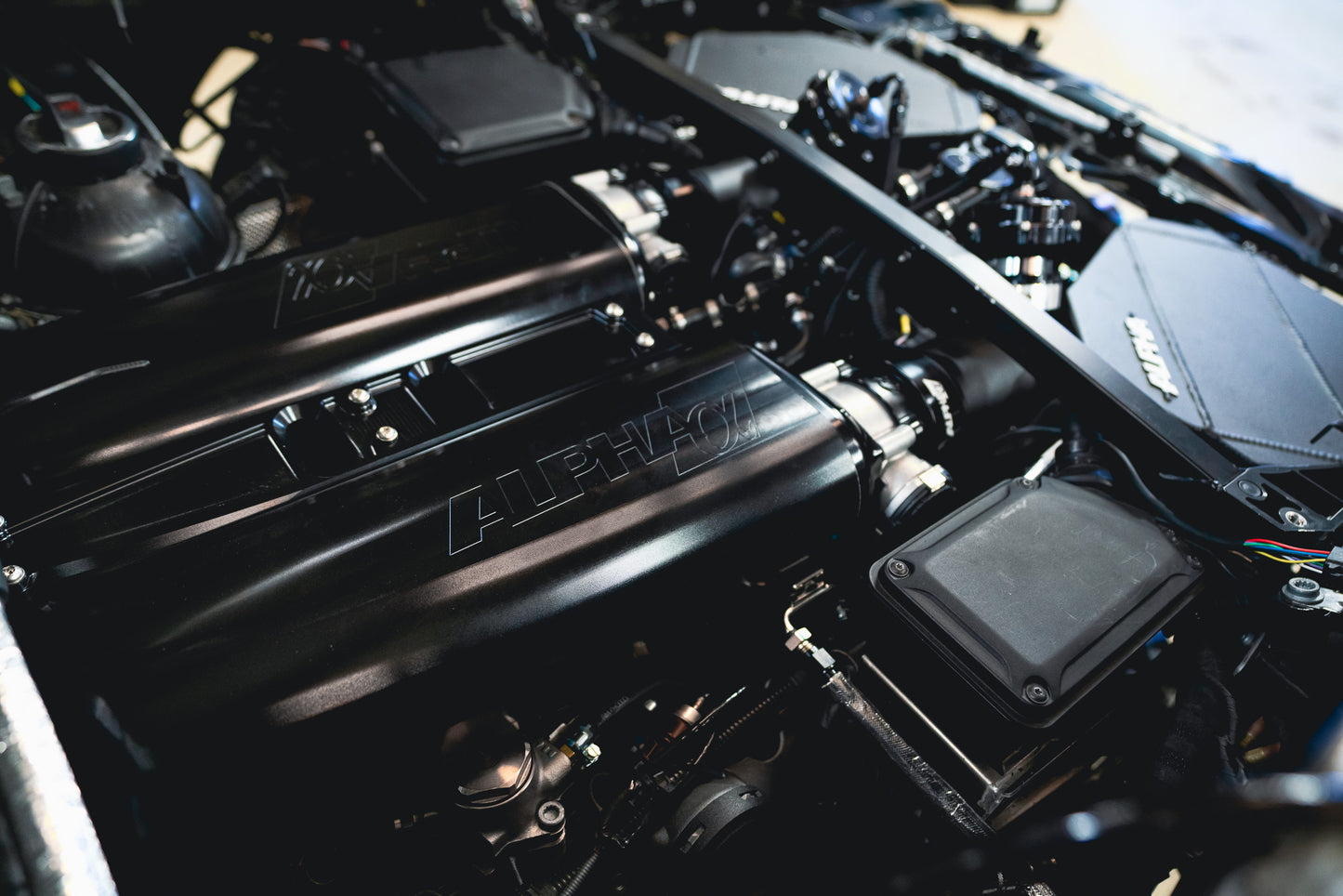

• AMS BILLET INTAKE MANIFOLD PROVIDES MASSIVE IMPROVEMENT OVER OEM PLASTIC MANIFOLD

• DIRECT BOLT-ON DESIGN FOR RAPID INSTALLATION, NO MODIFICATION TO CHASSIS

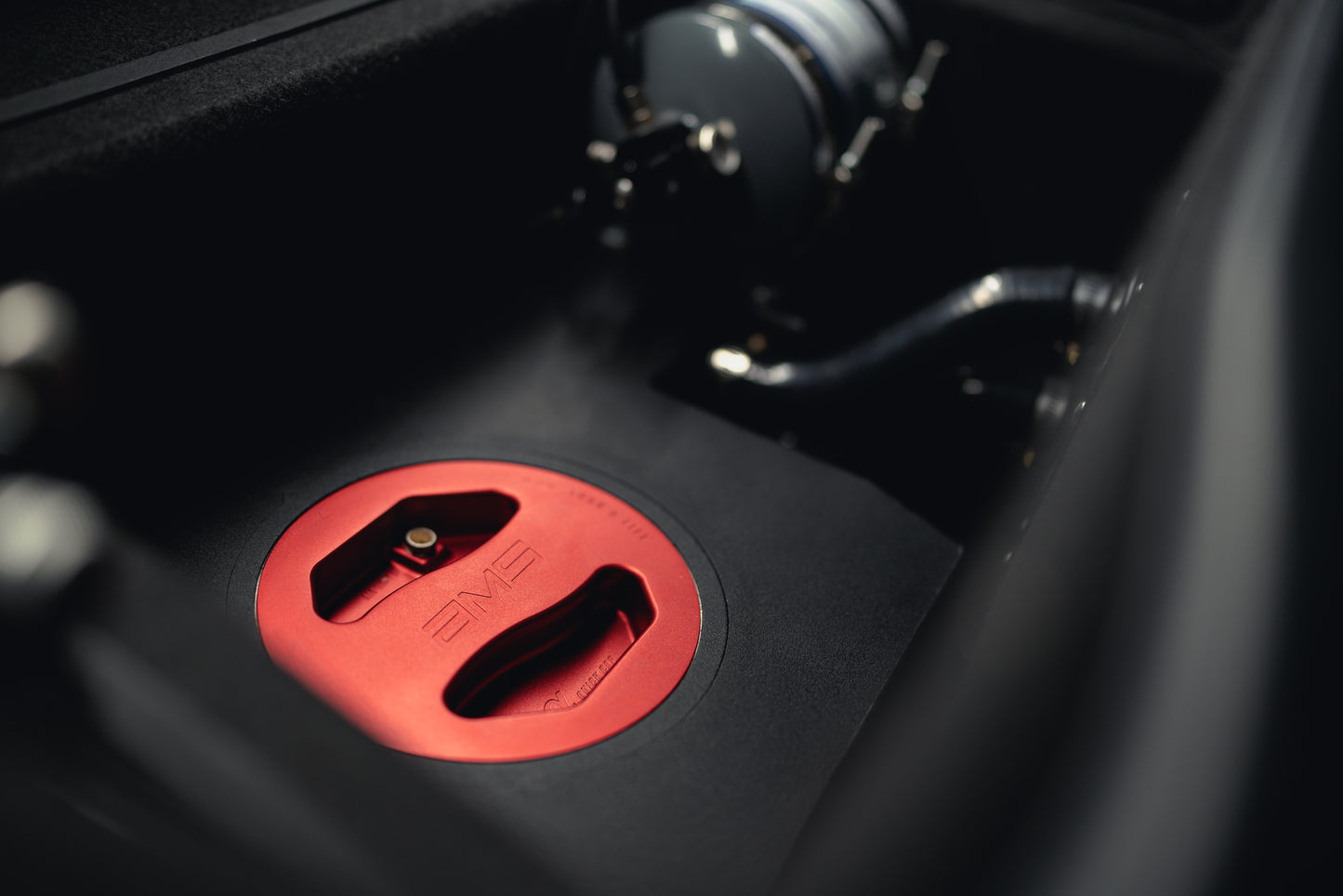

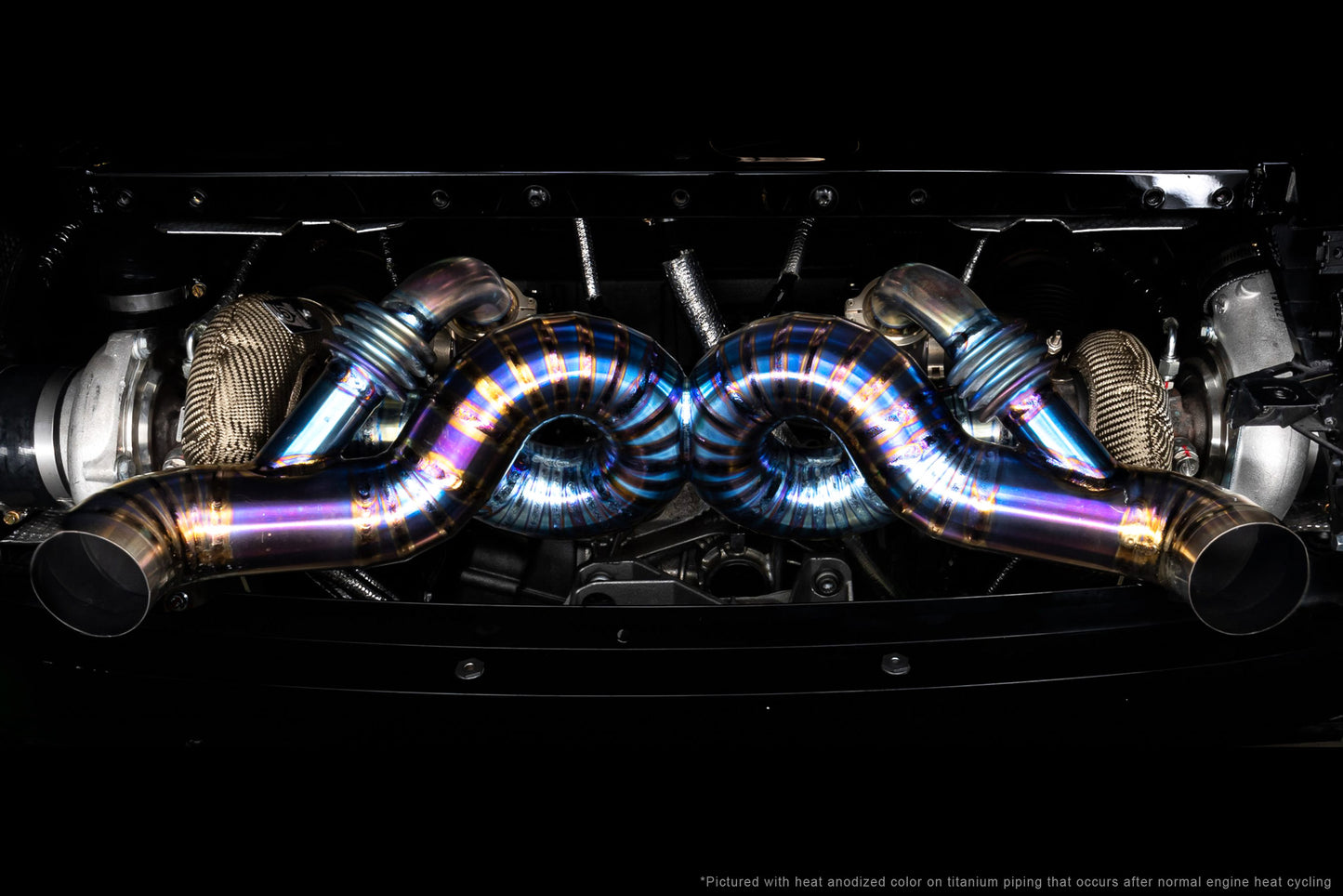

• 4″ TITANIUM EXHAUST PIPING AND FRUNK ICE BOX INCLUDED AS STANDARD

• AMS QUICK CLAMP PIPE CONNECTIONS THROUGHOUT INDUCTION SYSTEM

• TRIPLE BRUSHLESS FUEL PUMP SYSTEM, INCLUDING BRAIDED LINES, FPR, AND FLEX FUEL KIT

• A COMPLETE TURN-KEY PACKAGE, PRICED INCLUDING INSTALLATION LABOR AND CALIBRATION

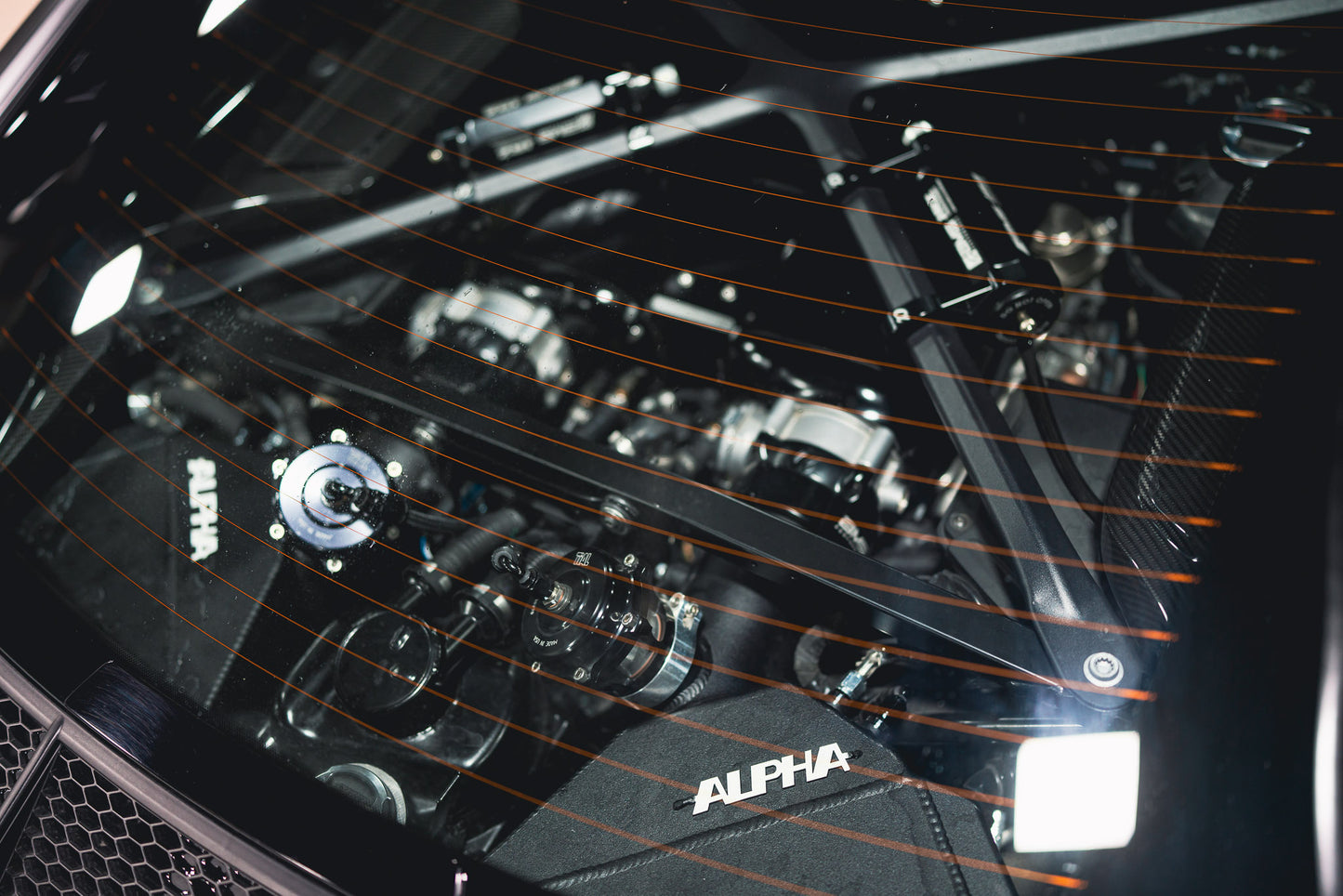

THE LAMBORGHINI HURACAN ALPHA 28 TWIN TURBO SYSTEM

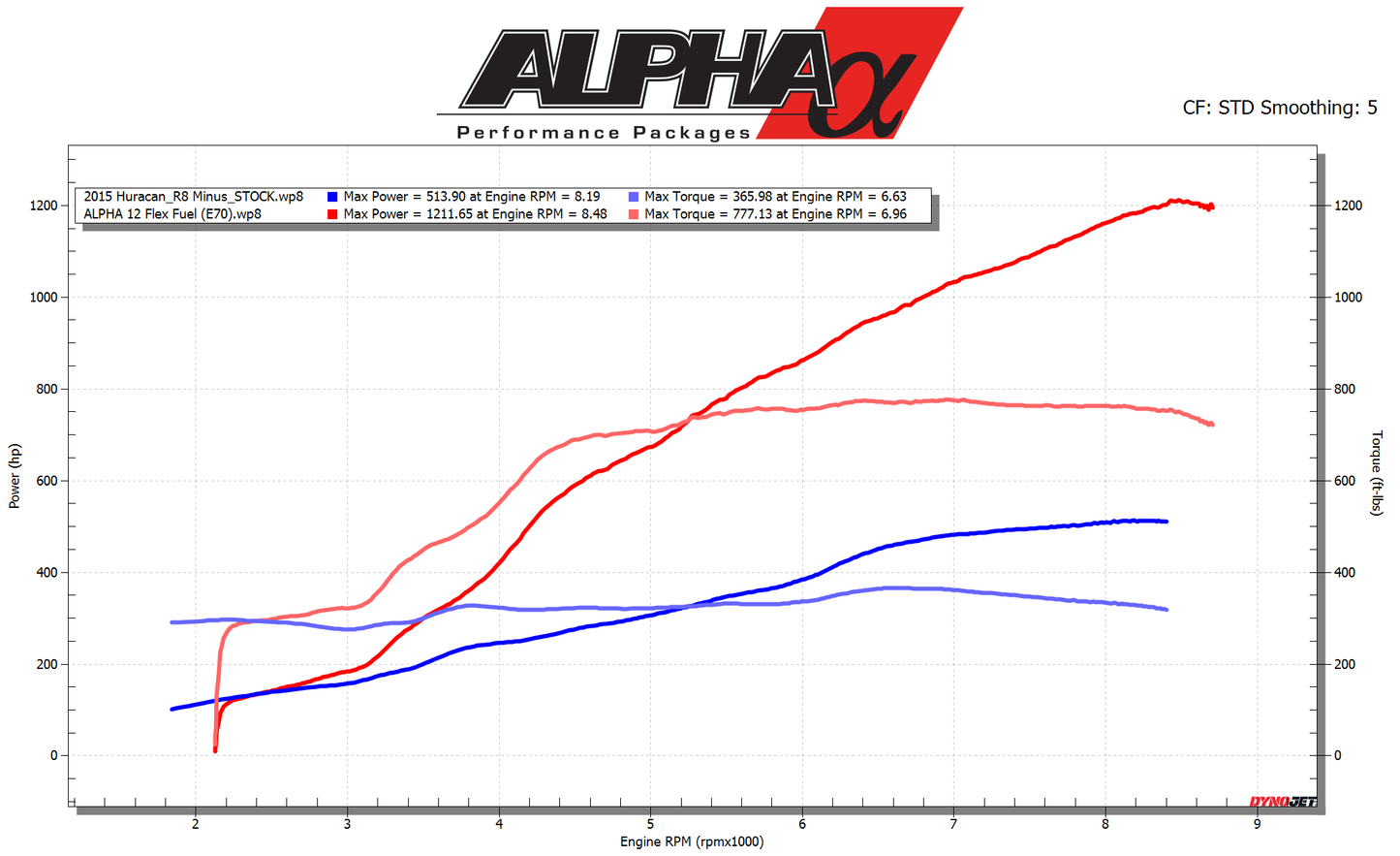

As standard, the ALPHA 28 Twin Turbo Package for the Lamborghini Huracan makes 2800+ WHP on race fuel, and you can expect approximately 1000 WHP when running on 93 octane gasoline.* This power equates to endlessly repeatable 7 second quarter mile runs with a proper wheel and tire set up, suspension, and the appropriate safety equipment.

Available as a turn-key package, The ALPHA 28 has been developed as a bolt-in solution that can be rapidly installed at AMS Performance, or at your local select AMS certified installer. No modifications to the chassis or emissions systems are necessary, and our team has worked diligently to make sure our ALPHA 28 components have a fit and finish better than OEM. We keep as much as is possible of the ALPHA 28 system in stock and ready to be installed on your vehicle as soon as you are ready to start your build. As your transmission gearbox and engine will be used as cores to build with, some turnaround time is necessary. However, there will be no months long wait times for fabrication, or excuses from parts vendors, like you’ve heard about with other shops and their nightmare build stories.

ENGINEERED TO WIN

Our Snailworks© Engineering Team has spent hundreds of R&D hours refining the ALPHA 28 Twin Turbo Package to be the best performing, highest quality, and easiest to install kit on the market. Focusing on component and materials selection is crucial, and is why we have selected top tier components as the foundation of our system, like the Garrett intercooler cores and turbochargers, along with TiAL wastegates and blow off valves, and a high flow brushless water pump for maximum performance and reliability. Everything has been thought of, even down to the fine details like the AMS QuickClamp™ pipe connections and high-temp line sheathing for superior heat management.

Our team has gone the extra mile to develop innovative new solutions to problems found when adding forced induction to the 5.2 FSI V10 engine found in the Lamborghini Huracan. One of the things we saw during the development phase was a substantial air leak at the intake manifold flange due to the now positive air pressure within the manifold. To solve this, we developed a beautifully machined and anodized aluminum ring which fits around each intake runner gasket to provide additional sealing pressure. We chose to engineer and machine an elegant solution while competitors take the easy way out and use silicone to essentially glue the manifold pieces together.

FLEX-FUEL HARDWARE AND CALIBRATION FOR AUTOMATED ETHANOL OPERATION

The ALPHA Fuel System included in the ALPHA 28 Package has been developed by our talented AMS Snailworks® Engineering Team as a complete system, but with a modular approach. This complete fuel system has four separate subcomponents – the Triple Brushless Pump Kit at the fuel tank, the Fuel Pressure Regulator and Fuel Line Kit in the engine bay, the Fuel Rail Kit on the intake manifold, and a Flex Fuel Kit add-on for ethanol fuel usage. While these four main subcomponents are available to purchase separately, they have all been designed to fit together seamlessly as a complete system.

The benefit of developing a system in this manner is that we can reimagine how the system fits and works together to optimize vehicle-wide systems to improve fuel flow, drivability, and ease-of-use. There are a number of extremely restrictive components within the factory fuel system which our reimagined ALPHA Fuel System reroutes, removes, or replaces to vastly increase fuel throughput. Another of the key features of the ALPHA Fuel System is the ability to have OEM-like siphon system functionality, without the highly restrictive fuel flow of the OEM system. Because we have been able to re-engineer the entire fuel system as a complete unit, we can provide fuel to both sides of the saddle tank equally, keeping the fuel pump assembly full of fuel at all times. Where other builder’s kits use impractical and potentially dangerous external surge tanks, or can’t be driven below half a tank without fuel starving, the ALPHA Fuel System solves these issues by way of our advanced engineering.

This complete ALPHA Fuel System when used in conjunction with the MoTeC M142 engine management system allows the ALPHA 28 to facilitate a completely automated flex fuel solution to run gasoline, E85, or any mixture of gas and ethanol with a content rating from 0 to 100% ethanol. This gives you the ability to run E85 or other blend of ethanol fuel without having to worry about manually measuring and calculating your ethanol content percentage. The integrated ethanol sensor informs your vehicle’s MoTeC ECU on the content percentage, and the custom AMS Flex Fuel calibration will automatically adjust parameters like fueling, boost, and timing to produce the most power possible for a given fuel or mixture of fuels. These adjustments happen seamlessly in the background of your flex fuel tune allowing you to be flexible with what fuel you utilize in your V10. This is a set-it-and-forget-it flex fuel solution that requires no adjustment once installed and tuned.

ADVANCED MOTORSPORTS FEATURE SET VIA MOTEC STANDALONE ECUS

With the ALPHA 28 Package, there is nothing additional needed as we are providing an all inclusive solution with all parts, labor, and tuning services. The ALPHA 28 Package comes with all necessary ECU and TCU hardware, software, and our expert calibration service on our in-house dynamometer (remote service available for AMS Certified Installers). While the factory ECU is an excellent choice for many customers, at a certain point, the advanced functionality and features of a standalone Engine Management System (EMS) solution become a necessity. The Dual MoTeC M142 EMS has a number of benefits that the factory ECU does not, ranging from the ability to utilize flex-fuel, or advanced motorsport traction control, to a wide array of fail safes such as an added safety trip for excessive temperature readings. These perks and safety features give you the confidence and peace of mind necessary when you are behind the wheel, sitting at the starting line.

The MoTeC M142 kit is a complete replacement for the two factory ECUs, utilizing existing wiring, sensors and mounting hardware to deliver plug-in convenience with fully programmable control. The M142 ECUs are supplied with our own AMS Standalone Install & Sensor Kit, providing for additional functionality by way of sensor monitoring and improved safety measures. This proprietary installation kit takes the MoTeC system to the next level by making install a breeze and including extra sensors that we feel are necessary to operate a V10 safely in a motorsports environment.

The dual M142 kit is comprised of a Primary ECU, in which all tuning adjustments are made, and a Secondary ECU that mimics settings from the Primary. This mirrors how Audi and Lamborghini have configured the vehicle from the factory, with an engine computer controlling each bank. After initial setup, only the Primary ECU requires connection to M1 Tune for adjustments. Along with fuel, ignition and camshaft control, this kit also supports other OE ECU feature such as cruise control, A/C, adjustable driving modes (Strada, Sport, Corsa), and all OE dash functionality and warning lights.

In addition to these OE system integrations, the MoTeC M142 EMS allows us to include advanced motorsport features that can improve traction and acceleration, boost control, and even transmission shifting. The advanced launch control and traction control features allow our calibrators to configure acceleration characteristics at a true motorsports level. We also have the ability to utilize MoTeC’s Level 3 internal datalogging feature, which allows for laptop-less logging of over 900 parameters that can be used for monitoring, diagnosis, and improving the performance of the vehicle via testing.

A TRANSMISSION AND ENGINE THAT’S BUILT TO LAST

The ALPHA 28 package upgrade requires the biggest and baddest DL800 transmission upgrade available for the Audi R8 and Lamborghini Huracan. Designed for high powered twin turbo applications, this transmission upgrade allows for piece of mind when pushing your supercar to the limit. Our AMS Gearworks technicians utilize a specialized Dodson Promax clutch kit which is a complete billet baskets and clutch pack unit for the ultimate in engine torque handling. The Promax allows for the highest level of engine torque holding capability for the DL800 while still keeping the car mild-mannered and simple to operate. Also featured in this build is the addition of a full 1-7 billet gear and shaft set from Dodson, which alleviates another common failure point at higher power levels. We then add prototype components and proprietary modifications which add crucial functionality and strength when hitting the race track or drag strip.

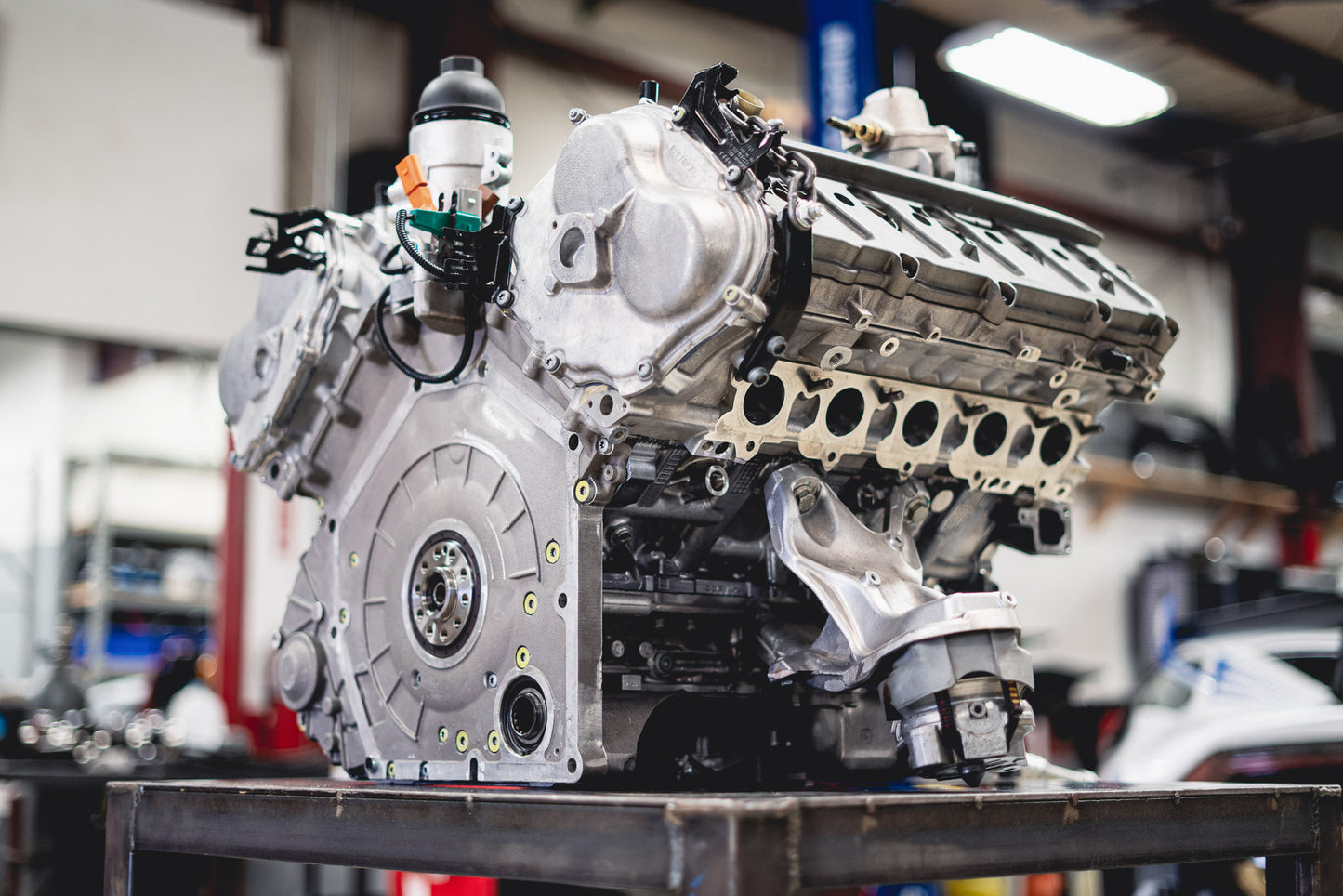

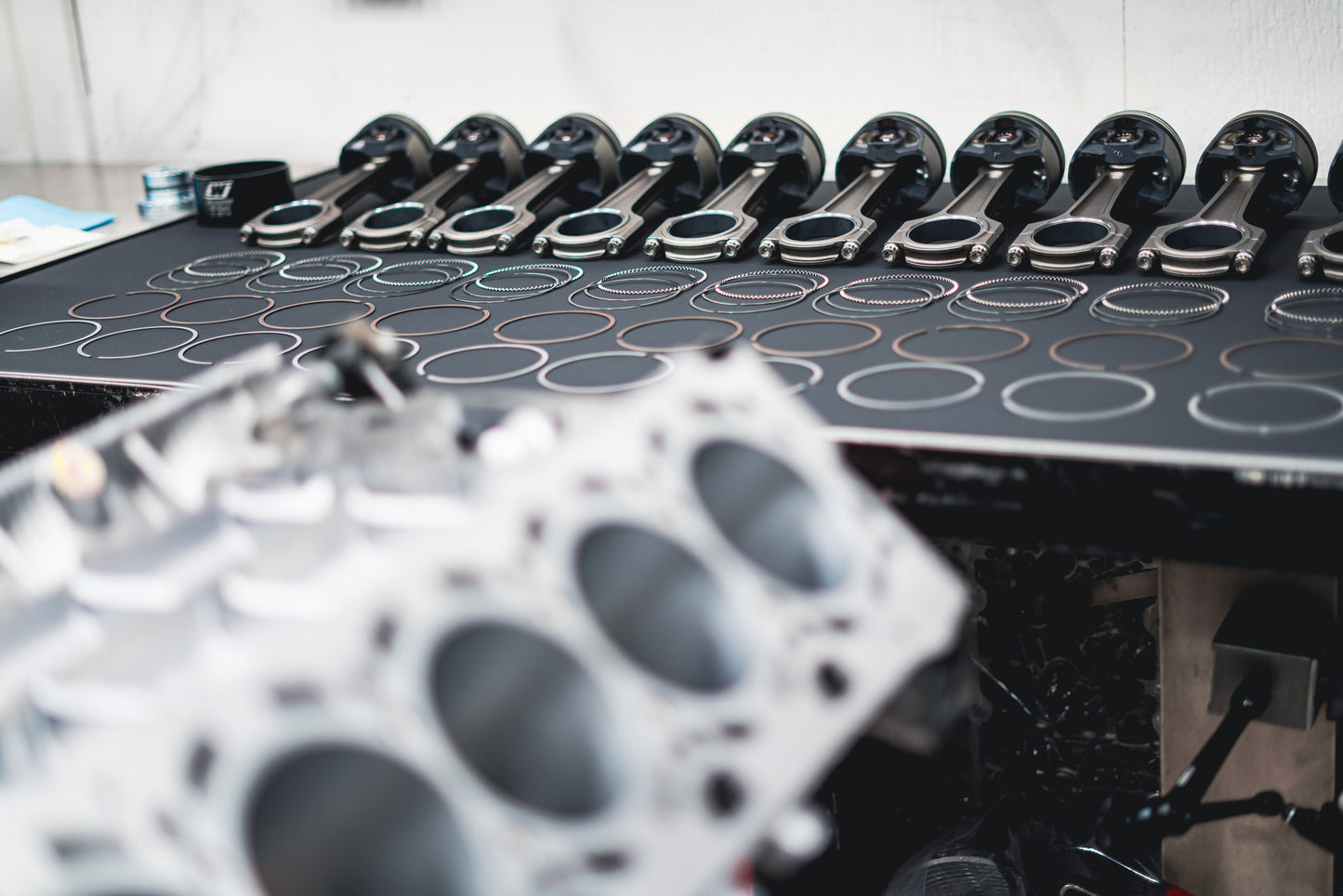

The AMS Performance V10 Long Block found in the ALPHA 28 package is the ultimate solution for high horsepower twin turbo builds in your Audi R8 or Lamborghini Huracan. This fully assembled billet block engine is ready for effortless installation and is crafted with precision machining using our advanced in-house equipment. Each AMS built engine has been strategically strengthened in multiple ways to support the monstrous power and torque produced by our ALPHA twin turbo packages. Assembled in a state-of-the-art temperature and humidity controlled clean room, it ensures every detail is meticulously crafted to perfection. By applying our decades of race-winning experience to the Lamborghini 5.2L V10 we have engineered the strongest, most advanced engine program available for your R8 or Huracan.

• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8

ALPHA 28 PACKAGE INCLUDES

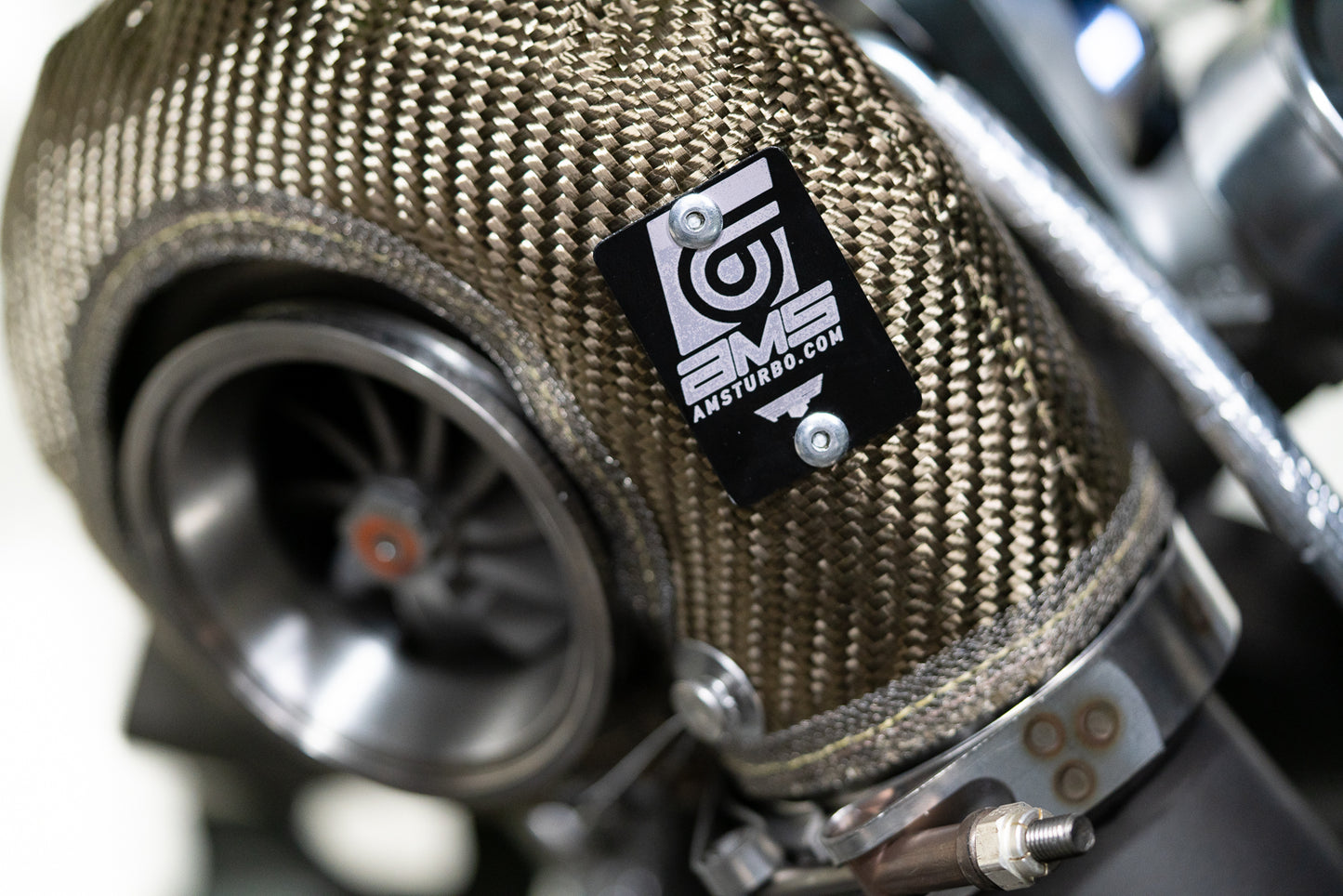

• G45-1600 G-Series Garrett Turbos w/ AMS Lava Rock PTP Blankets

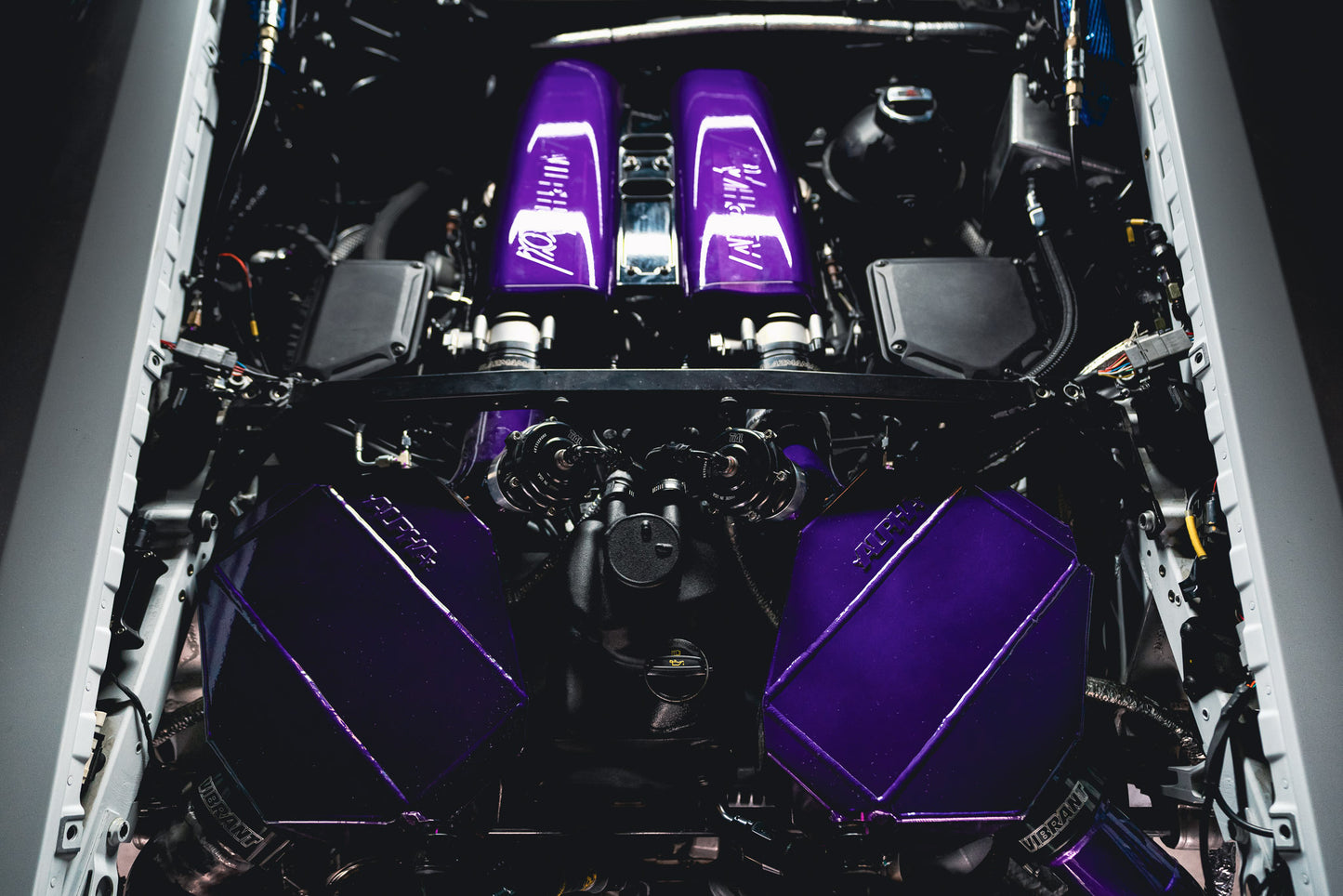

• AMS Air/Water Intercoolers utilizing Garrett Cores
• AMS Tig Welded and Powder Coated Intercooler and Intake Piping
• AMS Quick Clamp Connections Throughout Induction System

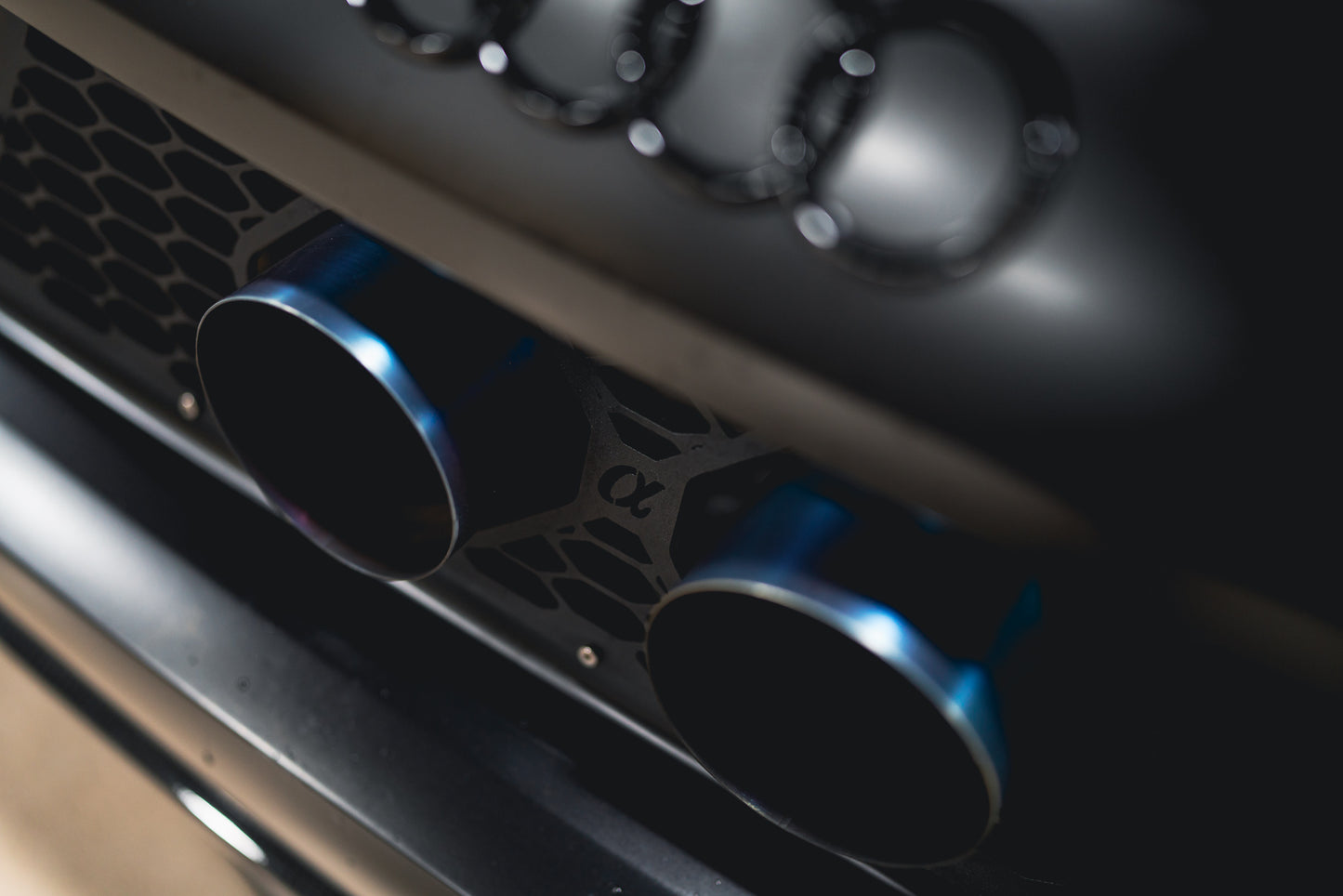

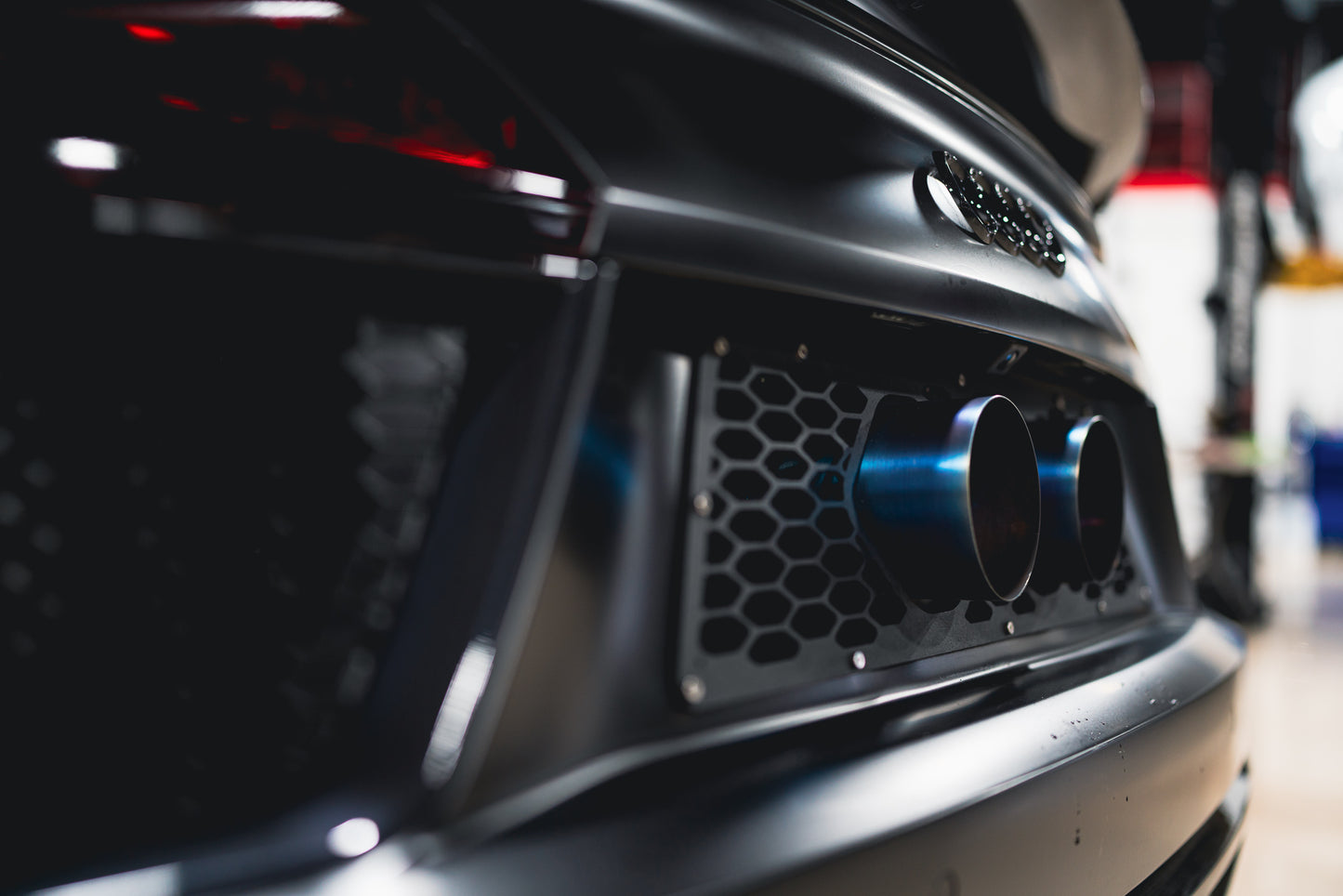

• AMS 4″ Titanium Exhaust

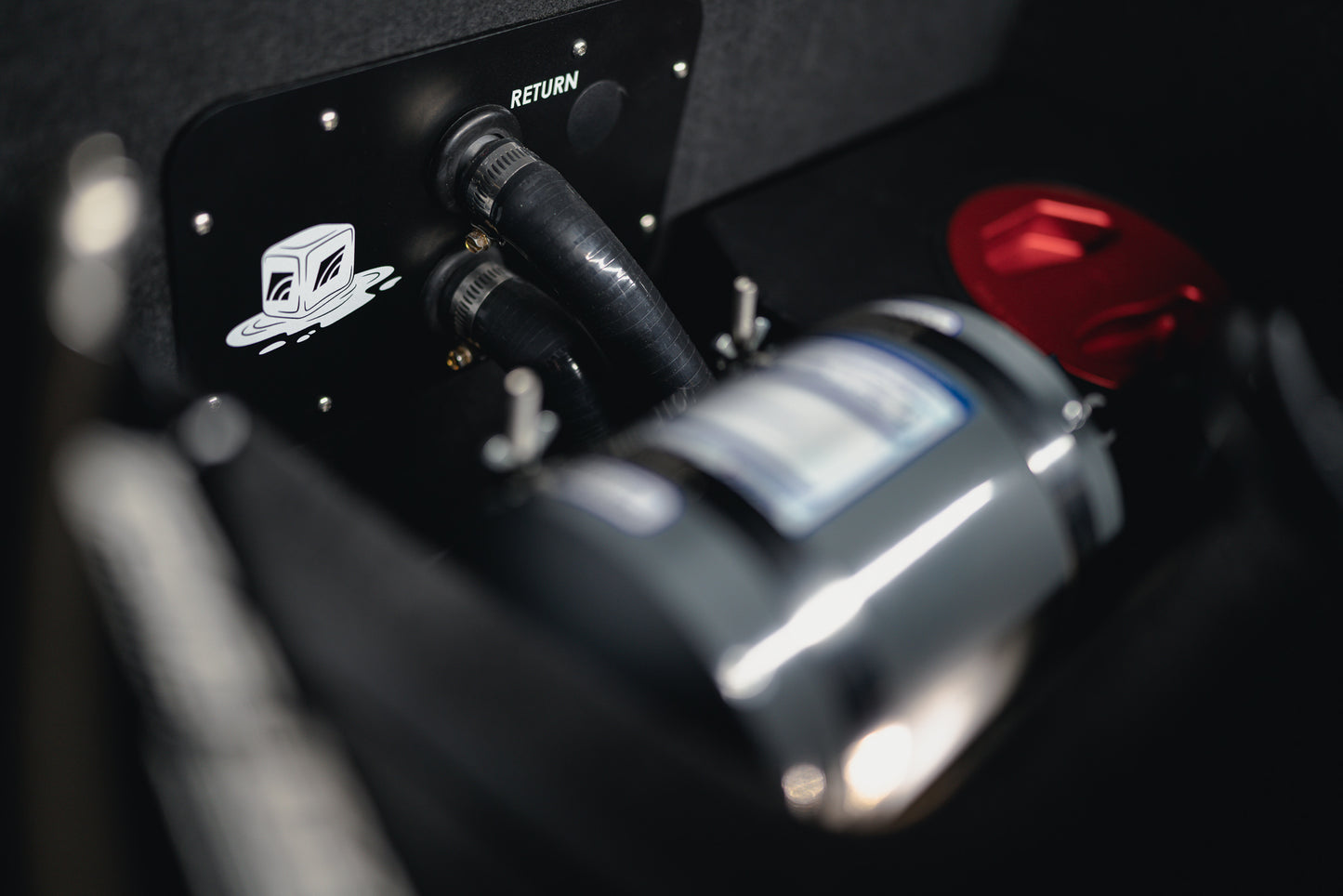

• AMS Frunk Ice Box and Billet Cap
• High Flow Brushless Water Pump

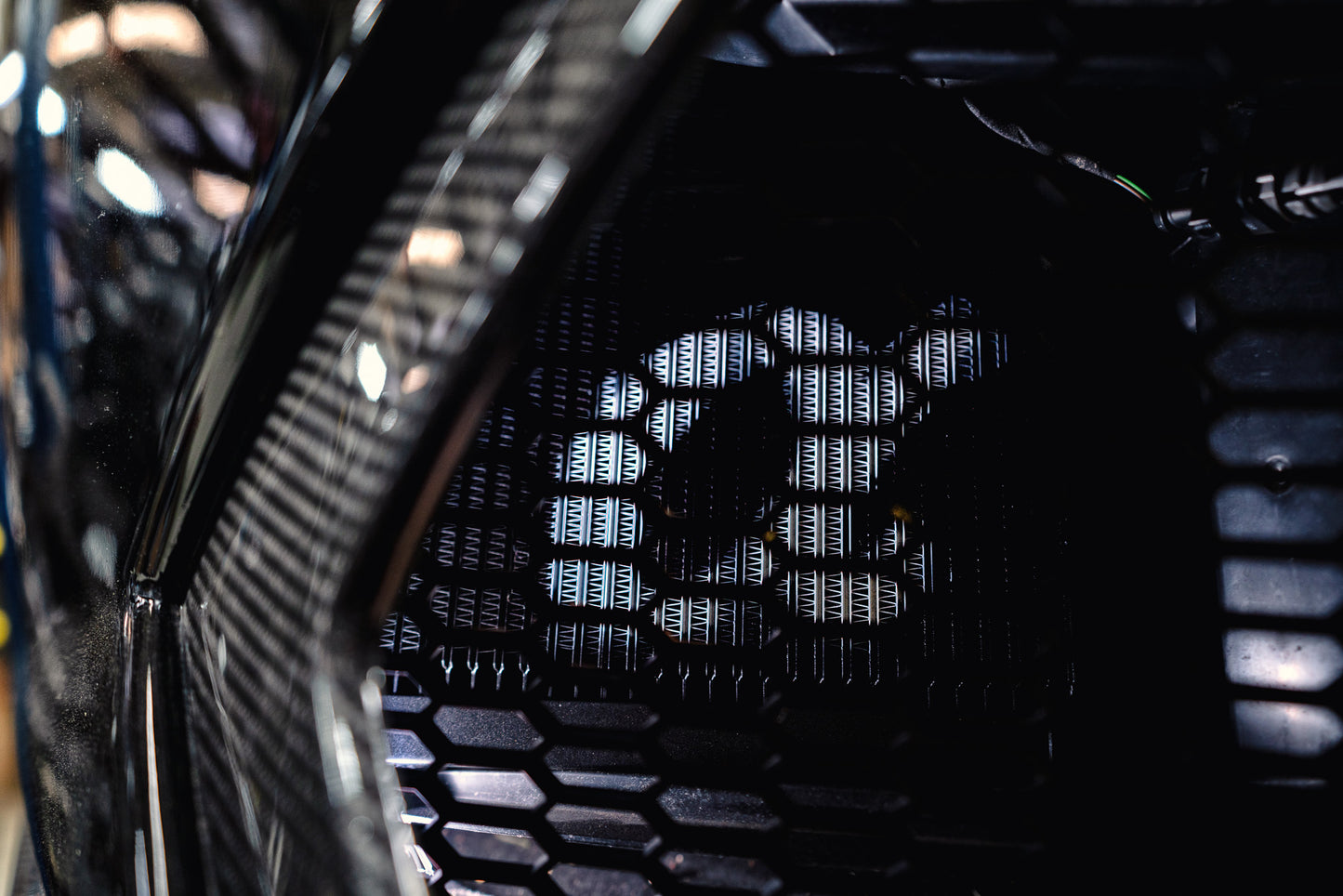

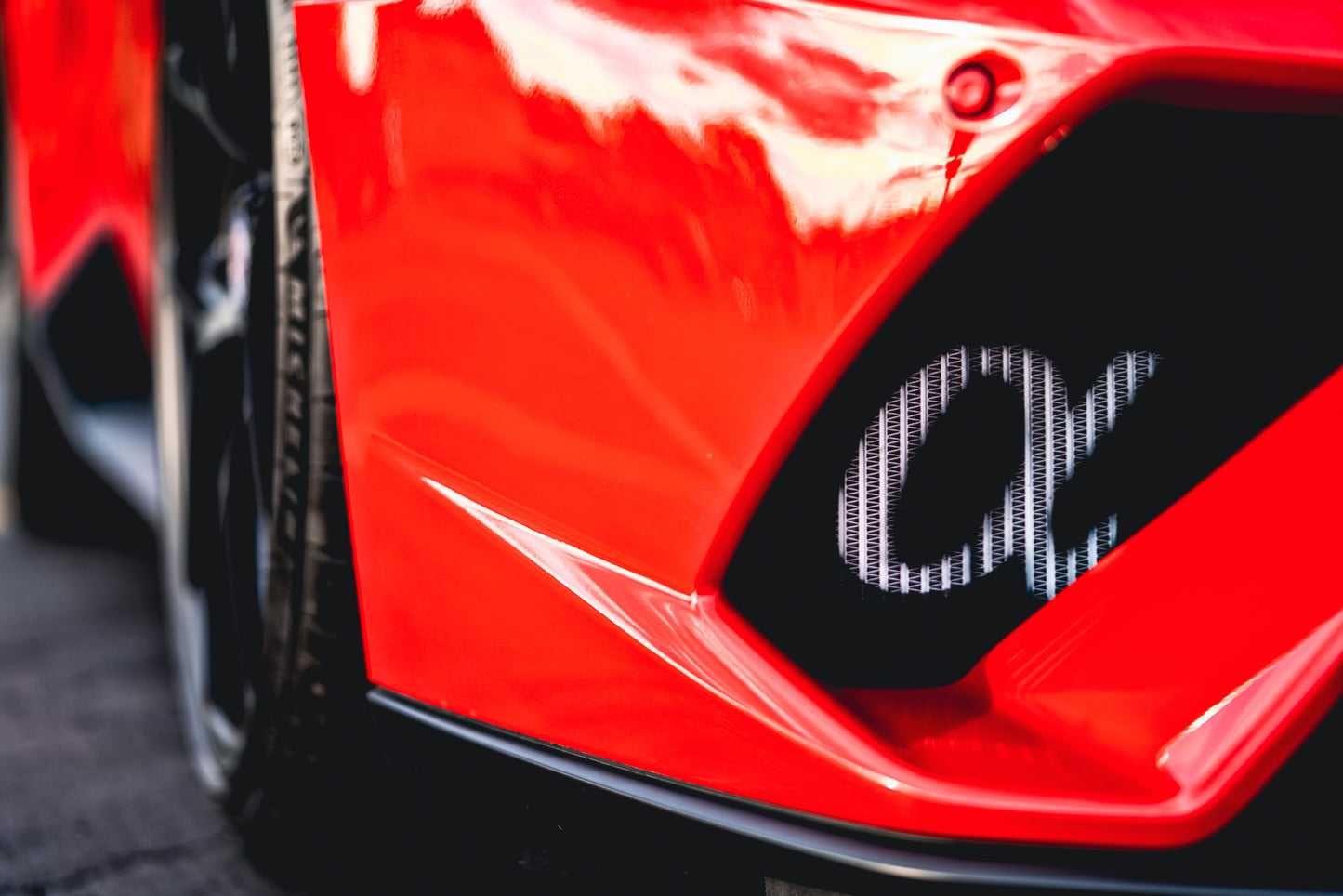

• AMS Dual Black Heat Exchangers at Front Bumper

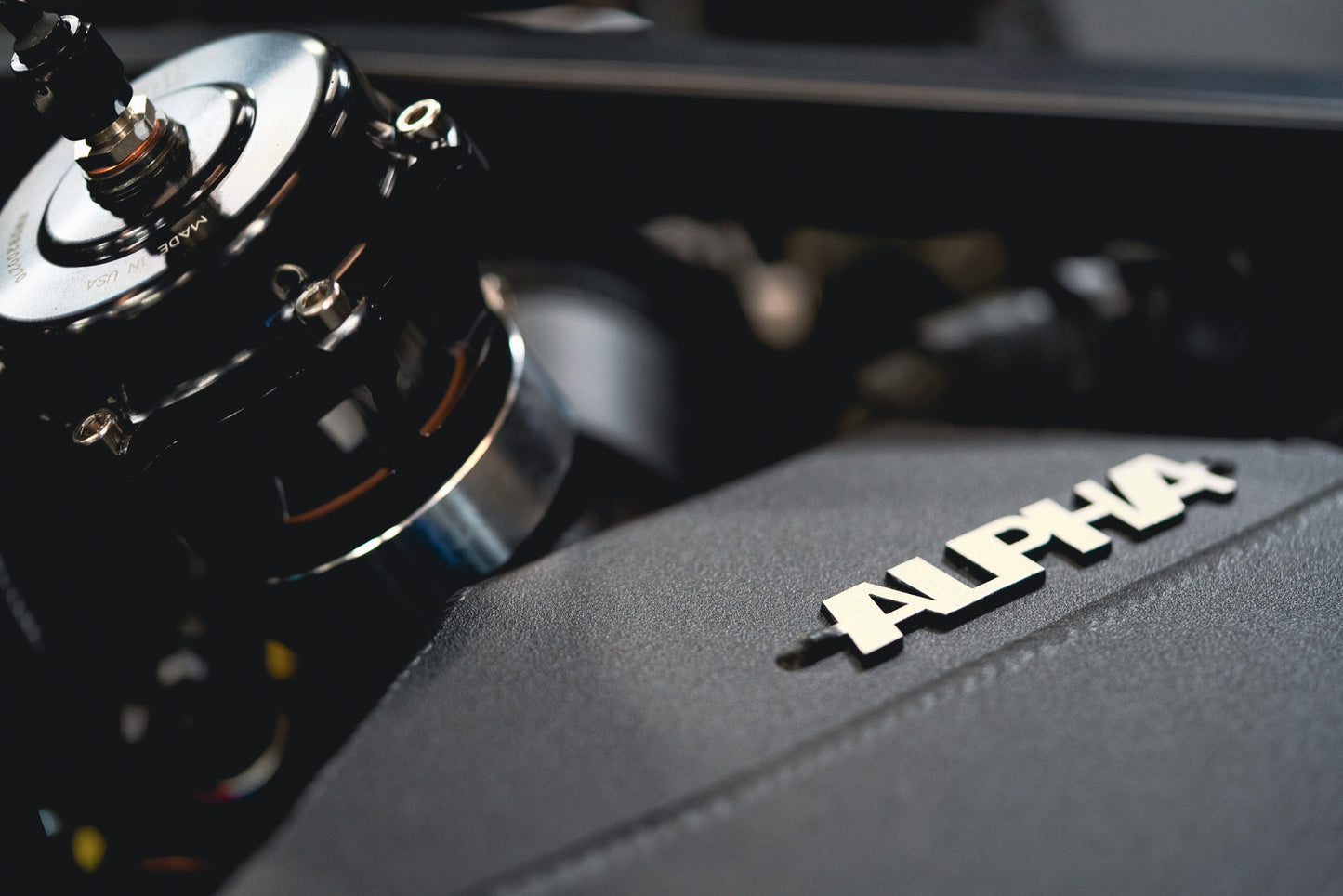

• TiAL Blow Off Valves and Wastegates
• AMS Gearworks Transmission Upgrade – Max Effort
• AMS Advanced Traction Control Package w/ Syvecs 50Hz 3-Axis GPS Receiver and AWD Controller
• Boost Logic Axle Set
• AMS V10 Long Block – Prototype Billet Block and Max Effort Spec Internal Components
• AMS Performance R8/Huracan ALPHA Fuel System – Triple Pump Kit
• AMS Performance R8/Huracan ALPHA Fuel System – Fuel Pressure Regulator + Fuel Line Kit
• AMS Performance R8/Huracan ALPHA Fuel System – Fuel Rail Kit
• AMS Performance R8/Huracan ALPHA Fuel System – Flex Fuel Kit Add-On
• Injector Dynamics ID1700-XDS Injector Set
• AMS Dual 3-port Boost Control Solenoid Kits
• MoTeC M142 Dual ECU Kit w/ Level 3 Logging
• AMS MoTeC Install Kit Incl. All Required Pressure Sensors, Temperature Sensors, Installation Hardware, Etc.
• AMS TCU OBD Flashing Module
• SPA Extreme Fire Suppression System – 5lb Electrical
• AMS Ancillary Components, Including all Hardware, Lines, Wiring, and Heat Shielding
• Installation Labor Included, Performed by our In-house Motorsports Technicians at AMS Performance
• Calibration for both ECU and TCU on our In-house Dynamometer
• Map Switching Selections for Various Fuel Types and Power Levels. (Valet Mode, 91 or 93 Octane Gasoline, Flex Fuel (Ethanol/E85), and 100+ Octane Race Fuel (International Fuel Mappings Available)
• Optional Race Track Mappings and/or Additional Mappings Available Upon Special Request

APPLICATIONS

• 2015 – 2019 Lamborghini Huracan
• 2017 – 2019 Lamborghini Huracan Performante
• 2020 – Current Lamborghini Huracan Evo

PRODUCT NOTES

* HORSEPOWER AND TORQUE NUMBERS, QUARTER MILE TIMES, 0-60 MPH, 60-130 MPH AND OTHER RECORDED TIMES ARE APPROXIMATE AND CAN VARY SIGNIFICANTLY DEPENDING ON NUMEROUS FACTORS SUCH AS YOUR DYNAMOMETER MODEL, AMBIENT TEMPERATURE, ELEVATION, TIRE SELECTION, ROAD SURFACE MATERIAL, FUEL OCTANE AND QUALITY, AND VEHICLE WEIGHT, AMONG MANY OTHERS. THE ADVERTISED NUMBERS HEREIN ARE BASED ON OPTIMAL CONDITIONS AND UTILIZING PROPER SUPPORTING MODIFICATIONS, BUT ARE GENERALLY ATTAINABLE RESULTS BY AN AVERAGE CUSTOMER. YOUR RESULTS MAY VARY.
