AMS PERFORMANCE PORSCHE 997.1TT INTERCOOLER SYSTEM

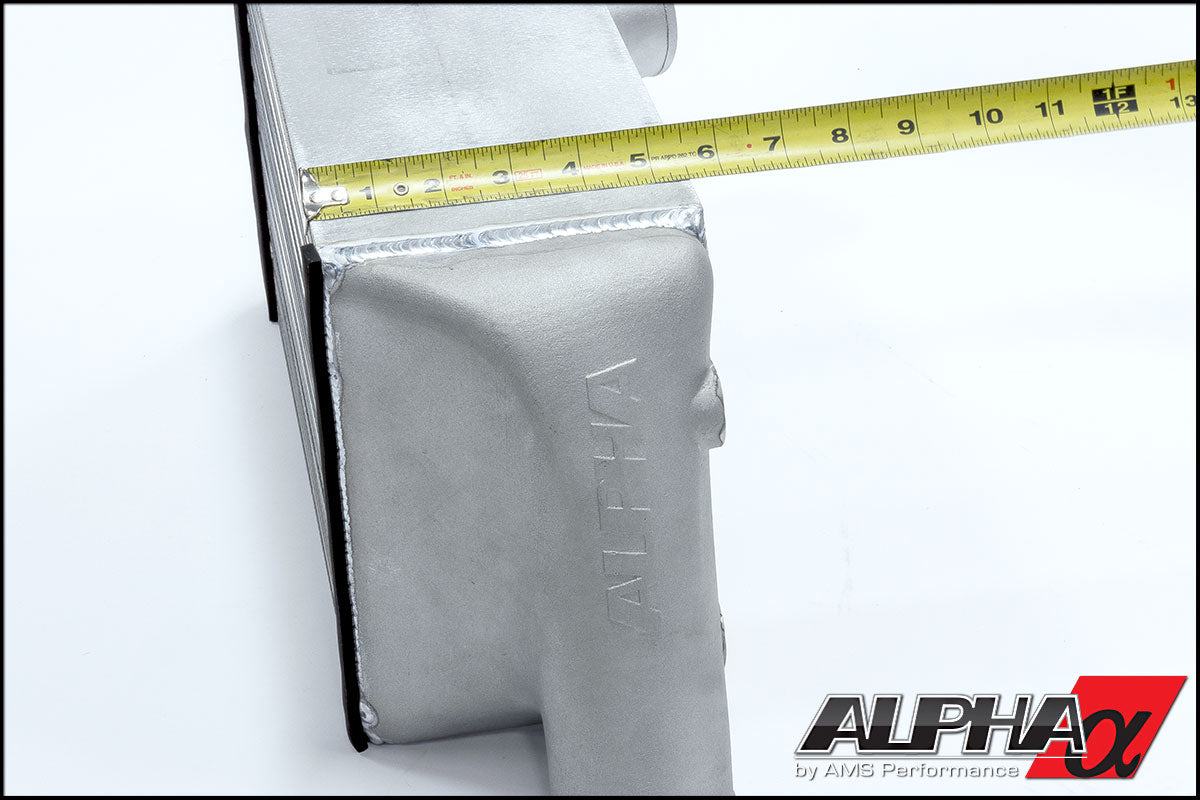

The Alpha 997 Intercooler System utilizes a pair of 5.5” thick, high volume cores giving you the most power producing upgrade on the market. Each core provides optimum fin density for unmatched cooling.

Computer aided design yields maximum results

Our engineering team designed the Alpha 997 Intercooler end tanks with extremely smooth features and geometry for the best flow resulting in maximum horsepower.  Designed using Solidworks 3D CAD software, these end tanks have improved flow over boxy sheet metal end tanks found on other intercoolers.

Cooler Intake Charge Boosts Power And Response

Channeling cool air to the intercoolers is vital for optimum performance of any intercooler.  Some manufacturers choose to remove the factory intercooler inlets in order to cut costs.  This greatly reduces the effectiveness of ANY intercooler whether it’s larger or not.  Others require that you cut up and tape the factory shrouding to the intercooler core in an attempt to seal the shroud to the intercooler core.  While this is better than removing the shroud, it is still not the most effective way to boost performance.

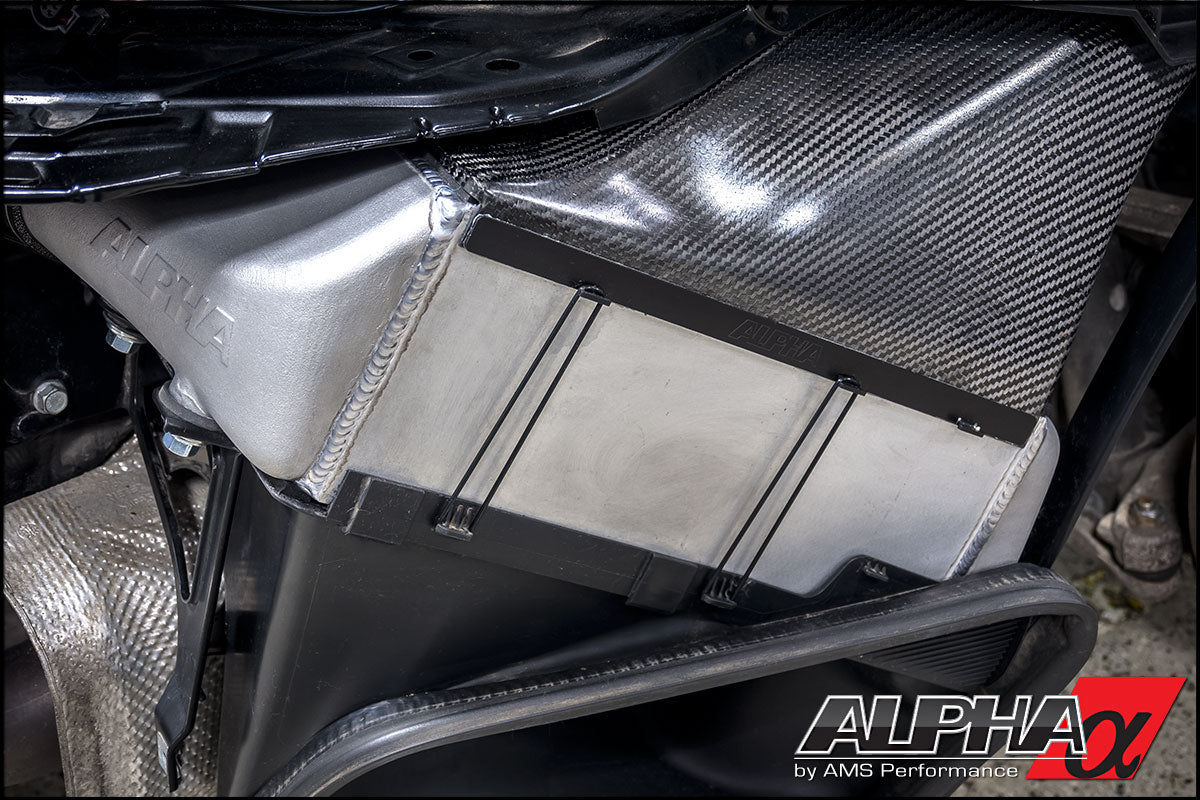

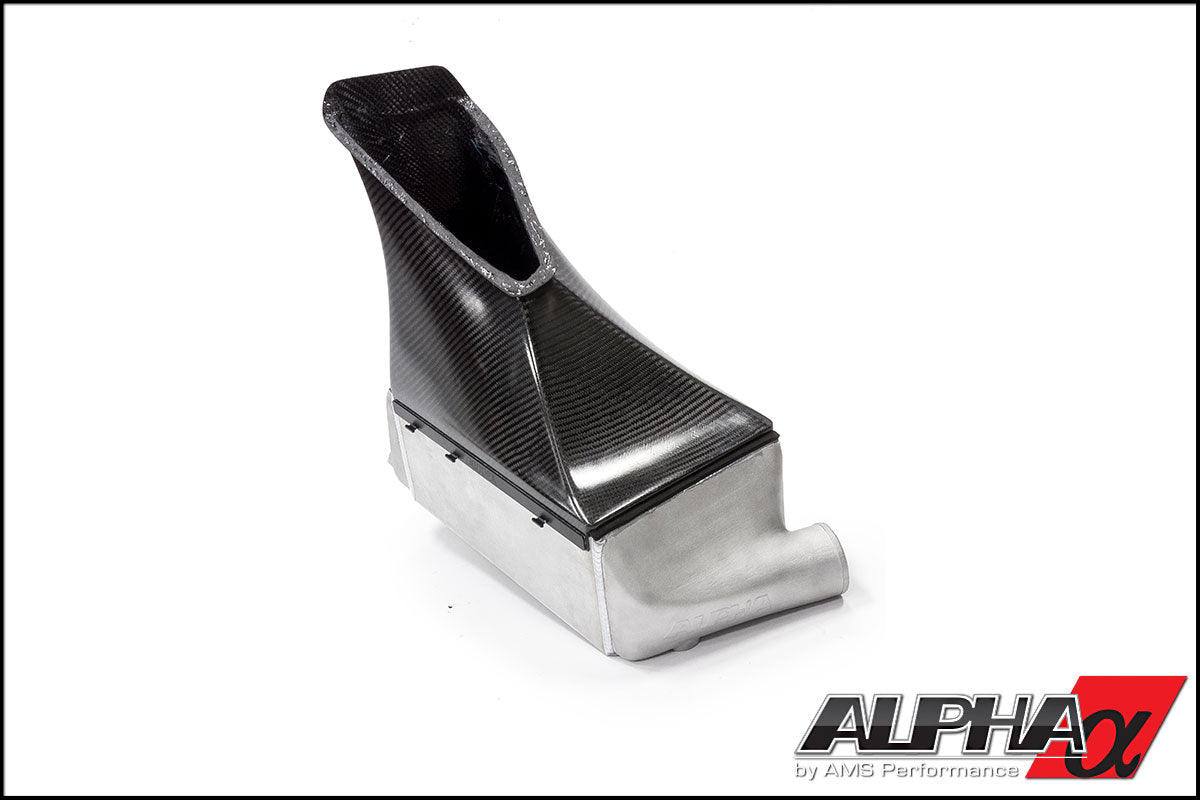

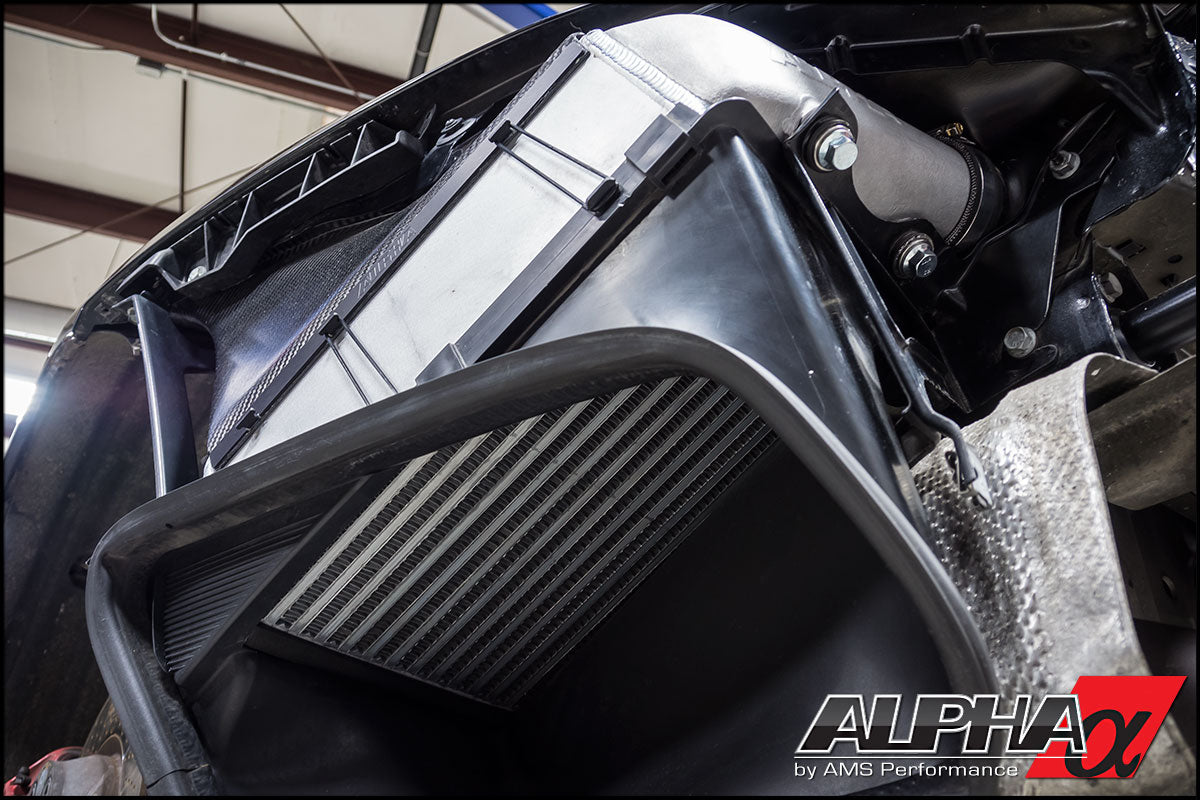

The Alpha 997 Intercooler System retains full use of the stock intercooler inlets (located in front of each rear wheel) forcing cool air into our larger, carbon fiber shrouds.  Not only is this option more aesthetically pleasing, each rigid, OEM-quality, carbon fiber piece is made to seamlessly mate to that Alpha Intercoolers feeding them cooler ambient air  more efficiently than the other two alternatives.  Not to mention eliminating the removal or destruction of your intercooler ducting.

Maximum Airflow For Maximum Horsepower And Torque

Another key component to the intercooler system is our computer designed intercooler piping. This features a carbon fiber Y-pipe offering 40% more flow. The larger 2.5” diameter is significantly wider than stock (1.79”) and is black powder coated to provide lasting durability. The Y pipe is a custom designed carbon fiber piece, conforming to the tight surroundings of the engine bay and the inner walls of the pipe promote the flow of charged air to the intake with minimal amounts of turbulence.

To further improve airflow, our engineering team went a step further by computer designing precisely molded, custom silicone couplers.  These provide perfect fitment and optimized geometry for improved airflow volume and velocity providing quicker boost response helping you stay ahead of your competition! Perhaps the best feature about this intercooler system is that it maintains cooling efficiency as more power producing upgrades are added to your Porsche 997.1TT! It improves the effectiveness of your other upgrades giving you maximum hp output potential!

Exclusive Benefits

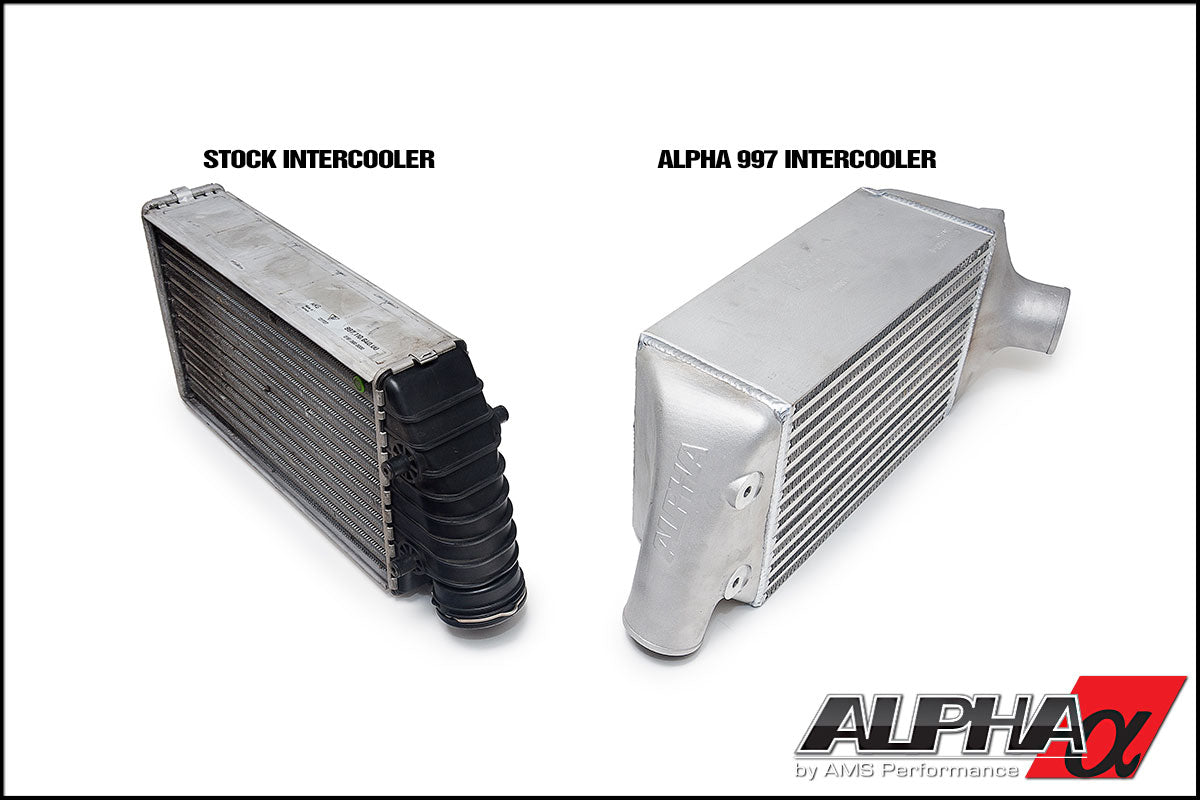

• Largest intercoolers on the market
  • Offers smooth cast end tank design to reduce turbulence
  • Offers optimum fin density for improved cooling
  • Appx. 800 CFM of airflow per intercooler core
  • 631 cubic inches of heat exchanger surface area per intercooler core
• CAD design achieves perfect fitment and provides the most potential for power
• Carbon fiber intercooler shrouds form a tight seal to maximize cooling efficiency
• Large Carbon Fiber Y-Pipe and 4-ply silicone couplers to handle more volume and increased boost pressure
• A simple installation without having to perform unsightly modifications
• High quality materials to last the lifetime of your 997TT
• Provides a factory fit & finish unmatched in the industry

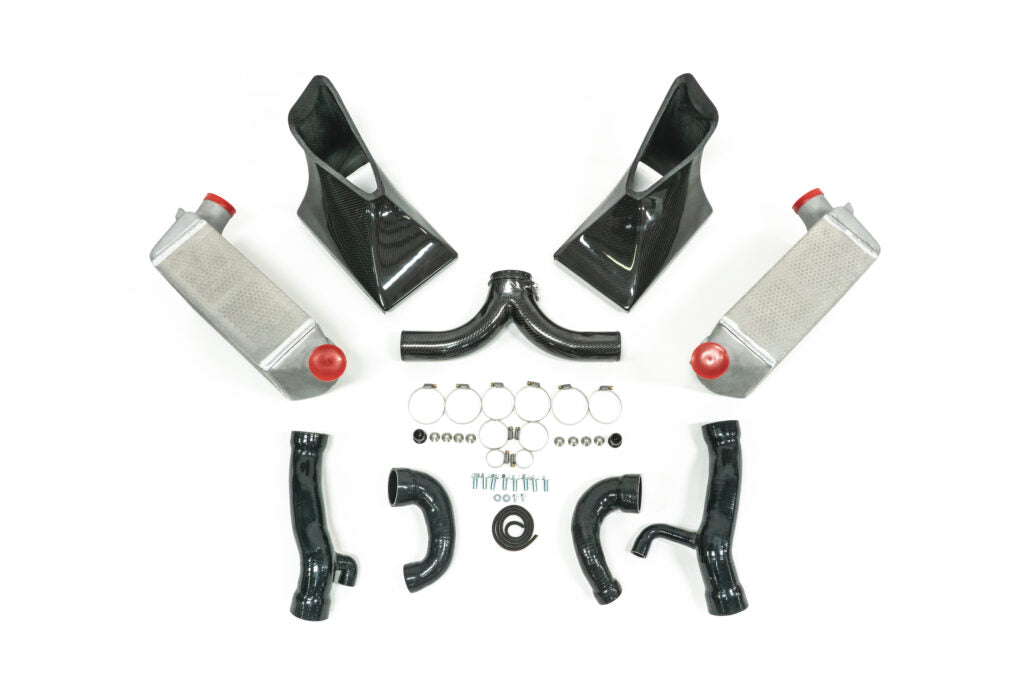

Includes

• 5.5” thick Alpha Intercoolers w/ cast end tanks
• Carbon Fiber Intercooler Shrouds
• High volume carbon fiber Y-pipe

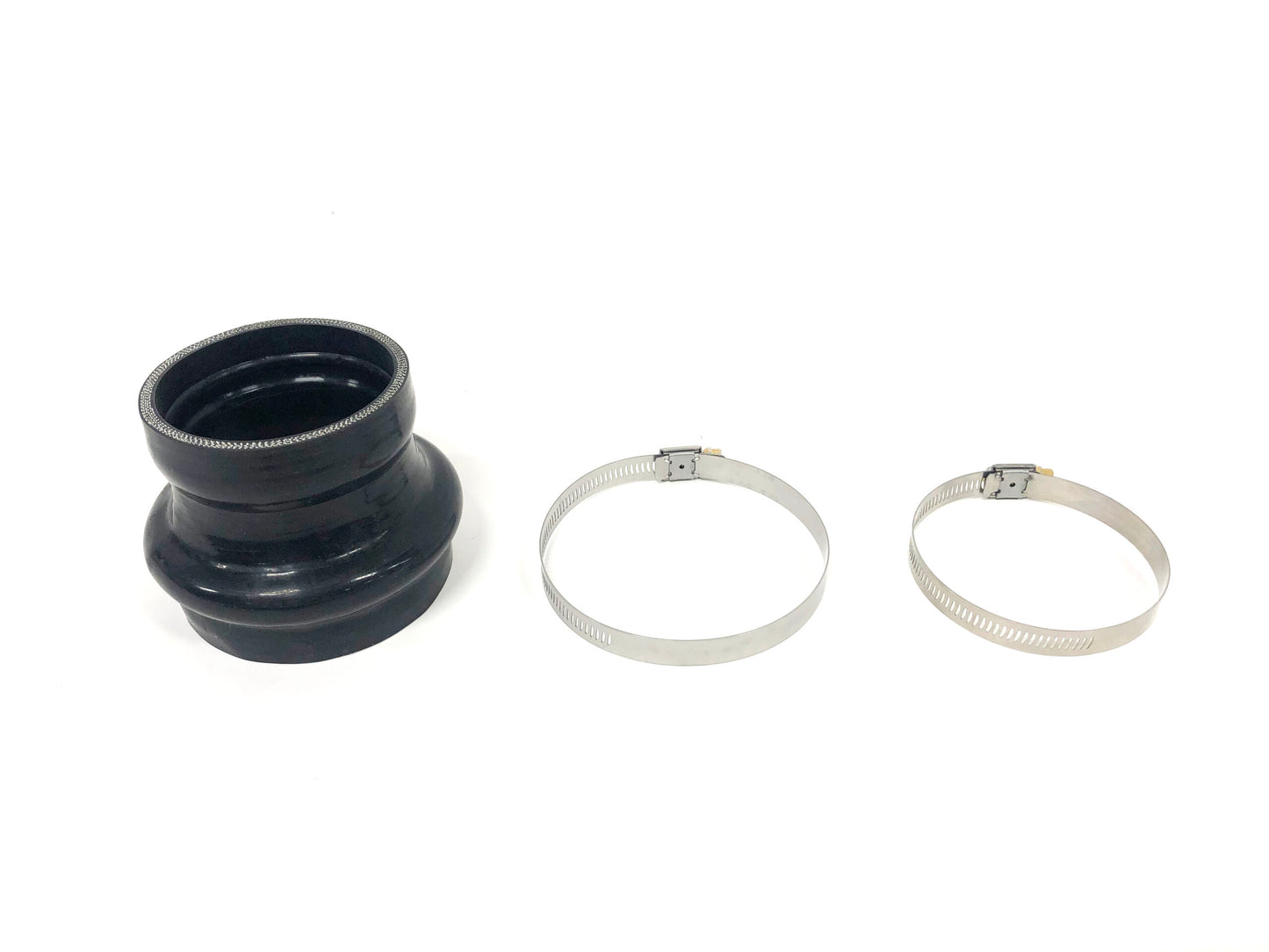

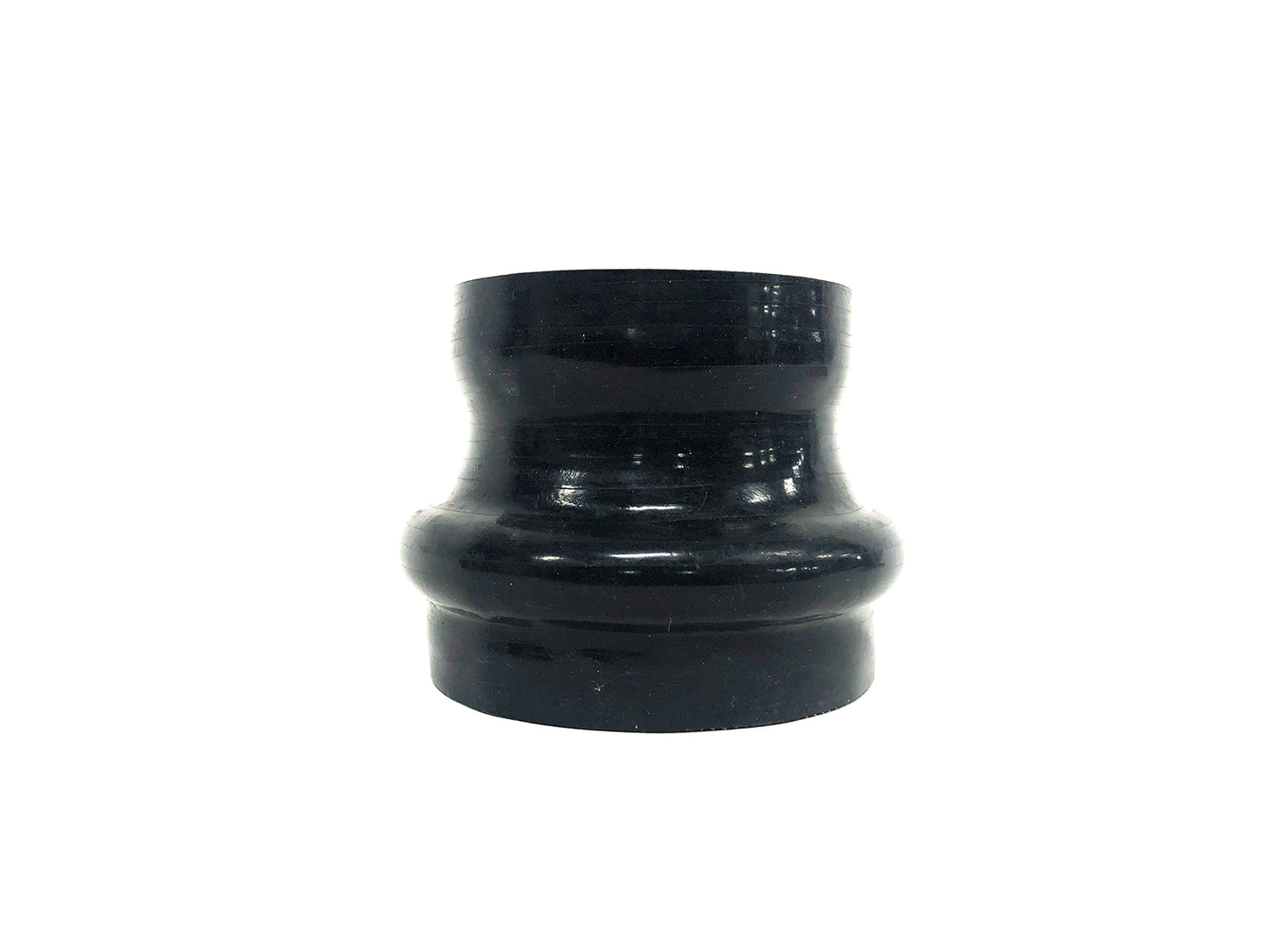

• 4-ply Silicone Couplers
• High quality Stainless Steel Hose Clamps
• All necessary fastening hardware

Kit Instructions

• Alpha Performance Porsche 997.1TT Intercooler System Install Instructions can be downloaded here.

PRODUCT NOTES

As these motorsports grade carbon fiber parts are hand laid, slight imperfections or weave pattern variances can be expected.
